Anodized aluminum structure and panels in painted steel. Main metallic elements in stainless steel. Diagram in the front panel with similar distribution to the elements in the real unit.

A rising film evaporator is similar to vertical tube heat exchanger, where hot fluid, such as steam is introduced in the shell side and a cold fluid such as sugar solution is fed in the tube side

 Allows to observe and control a serial, parallel or double effect evaporation process. The unit consists of two evaporators with a single glass tube, allowing the student to observe all the processes that take place in the unit.

Standard Features :

1. 7 mm. nozzle diameter (approx.).

2. 1 set of flat plate target.

3. 1 set of 120 degree cone target.

4. 1 set of hemisphere target.

5. 1 set of counter weight.

6. 1 set of Y distance scale, mm.

7. 1 set of main plastic cylinder, with tripod leg, horizontal plane can be adjustable via water leveller.

Standard Features :

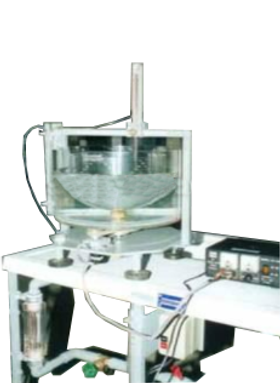

1. Forced vortex is produced by rotating of cylindrical tank which is made of clear acrylic

2. Rotating speed is adjustable and shown by digital speed indicator in term of rpm.

3. 1 set of lateral scale in millimeters.

4. 1 set of vertical scale in millimeters.

5. 1 set of motor speed controller.

6. 1 set of measuring proe and piezometer.

The trainer permits basic experiments on fluid mechanics. The experimental set-up is clearly laid out on a laboratory trolley. Due the use of a sealed water circuit, the trainer is particularly suitable for use in training and seminar rooms, and also lecture theaters.

The multi pump test rig is designed to run item by item of the following pumps on the same supporting base and accessories. The stainless steel supporting frame with 4 breakable wheels, water storage tank, flow meter, manometers or pressure gauges are provided.

A compact, portable and self contained unit which is suitable for classroom demonstrating. Typical test is turbine efficiency vs. turbine load.

 Small scale Bath Reactor designed for the kinetic study of homogeneous reactions liquid-liquid,
 both in adiabatic conditions and in isothermal conditions.

Three flame options are available to the user with the Air/Acetylene being the standard configuration. This flame can be used for nearly all standard elements while the N2O/Acetylene and the Air/LPG (Natural gas) are available as an option for the more demanding of elements.

FIA is an automated method of chemical analysis in which a sample is injected into a flowing carrier solution that mixes with reagents before reaching a detector.

The test section consists of clear plastic venturi tube with series of wall tapping allow measurement of the static pressure head distribution along the converging and diverging section, while a total head probe is provided to traverse along the center line of the test section.

Standard Features :

1. 1 set of 14 columns manometer with air hair pump.

2. 1 set of sudden expansion & contraction (PVC).

3. 1 set of adjustable constant head tank.

4. 1 set of graduate cylinder.

5. 1 set of elbows, short and medium radius (PVC).

6. 1 set of gate valve.

7. 1 set of straight pipe (PVC).

8. 1 set of pressure gauge.

9. 1 set of flow control valve.

For study of the following typical tests:

1. Fan efficiency, BHP vs Q

2. Effect of impeller pitch angle on fan performance.

3. Air velocity profile.

4. FSP, ?SP vs Q

Plastic wall teaching flume is designed to be set-contained unit without hydraulic bench. Compact size but very competitive with the larger teaching flume. Variable area flow meter for precisely measurement of water flow rate.

​

This bench top apparatus is designed for a study of fluid bubbling phenomena in fixed and fluidized beds of solid particles

This unit is common for the Chemical Reactors and can work with one or
several reactors.

Spectrophotometer techniques are used to measure the concentration of solutes in solution by measuring the amount of the light that is absorbed by the solution in a cuvette placed in the spectrophotometer .

Standard Features:

1. Plastic or stainless steel pontoon,

2. A set of sliding weight in vertical axis

3. A set of lateral jockey weight

4. A set of inclined angle scale

Standard Features :

1. 1 set of acrylic head tank, water head can be adjusted.

2. 1 set of sharp edge nozzle, installed at lower part of head tank.

3. 1 set of 8 pins for measuring of jet trajectory from nozzle, equipped with graph paper.

Standard Features :

1. 1 set of venturi.

2. 1 set of pressure and vacuum gauge.

3. 1 set of 5 - 80 lpm variable area flow meter more-or-less 2% precision.

4. 1 set of flow control valve.

Anodized aluminum structure and panels in painted steel. Main metallic elements in stainless steel. Diagram in the front panel with similar distribution to the elements in the real unit.

The equipment is a unit, designed to allow suction pressure(vacuum) or delivery pressure to be measured on various different pressure measuring devices for comparison.

​

The objective of the unit is to investigate the gas flow through a fixed and fluidised bed and to measure the heat transfer rate and coefficients for comparison with convective heat transfer rates in air.

 Ion Exchange Unit has been designed to study water softening in a single bed or water demineralization in a double bed system.

Designed to demonstrate the operational advantages of parallel or series operation, depending on the required duty. This unit consists of two centrifugal pumps, a feed water tank, circulation pipes, regulation valves, three pressure sensors and a flow sensor

Standard Features include:

1. A reservoir plastic tank.

2. A plastic quadrant.

3. stainless steel moment arm with high sensitivity fulcrum,with counter weight.

4. A set of standard weight

5. 1 set of water leveller.

6. 1 set of water level scale

The instrument is useful for determining of Osborne Reynolds number, effects of fluid viscous forces, static pressure and acceleration of fluid flow.

The purpose of the experiment is to study the differences of roughness, valves and geometries of pipe and how they influence friction losses.

Experimental Capabilities :
Definition of flow and path lines in fluid mechanics

1. Depiction of flow lines when flowing around bodies.

2. Influence of different shaped bodies on the flow.

Standard Features:

1. 1 set of friction belt and standard weight for determination of torque produced by turbine.

2. 1 set of water flow meter

3. 1 set of turbine revolution speed indicator

4. 1 set of pressure gauge at nozzle.

5. 1 set of turbine nozzle made of stainless steel.

​

Determination of the discharge characteristics of different size nozzles. Sequential comparison of different nozzles. Optical investigation of the change in a jet of water as a function of the flow rate. Influence of height of the column of water.
